1,250,000 BTU Hr. 54" x 20' Sour Lineheater - 14395
1,250,000 BTU Hr. 54" x 20' Sour Lineheater - 14395
Location:Stettler, Canada
or
Call 587-779-6921
Description

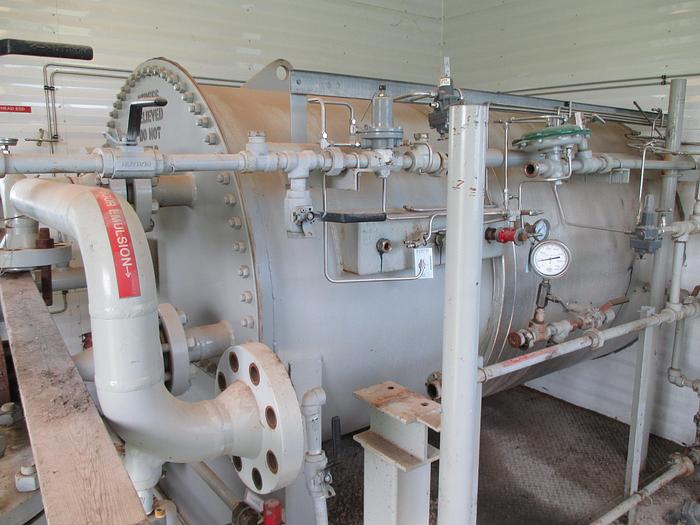

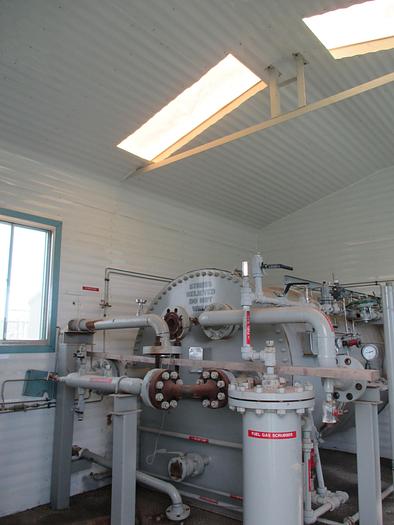

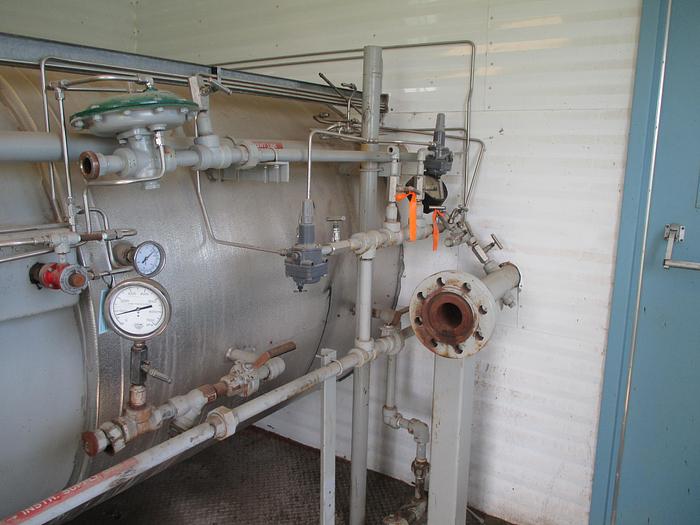

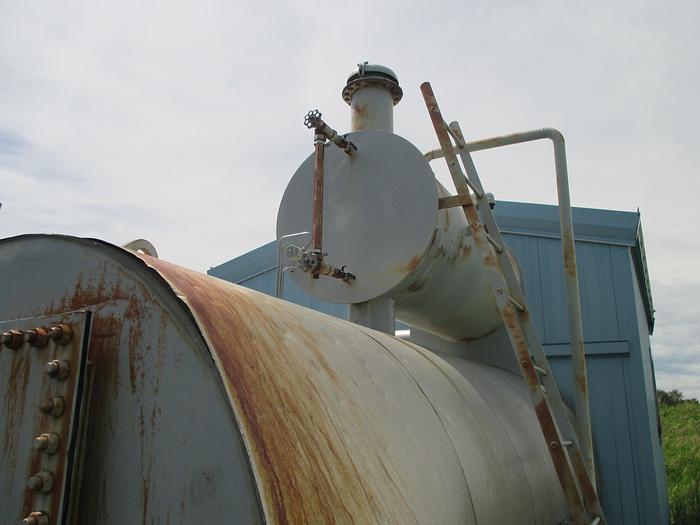

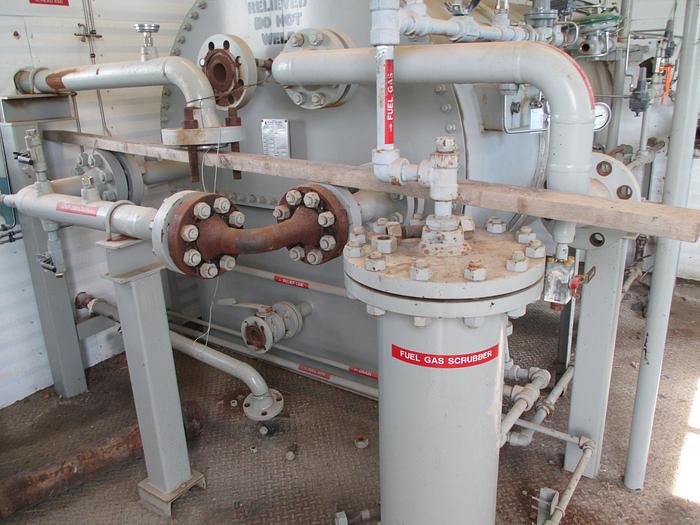

Field run 1,250,000 BTU/Hr lineheater 54" x 20' from Plains Oil Ltd.

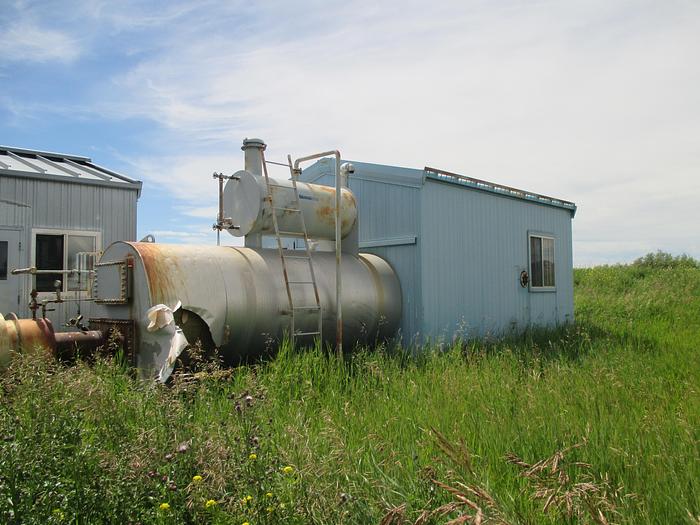

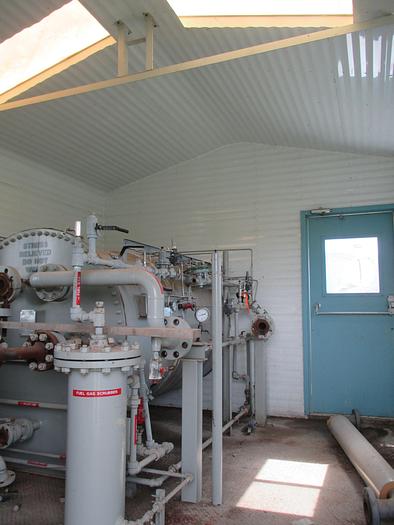

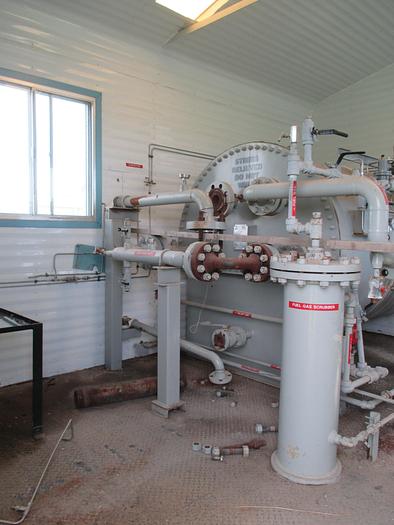

The heater shell comes insulated, maintaining energy effectiveness. The unit is housed in a durable self-framing building of dimensions 12’6” x 16’ x 12’6” with gable style roofing. The lineheater is supported on a sturdy 12’6” x 30’ structural steel skid.
A#438680
CRN# N9595.213,
Specifications
| Manufacturer | Plains Oil Ltd. |
| Condition | Used |

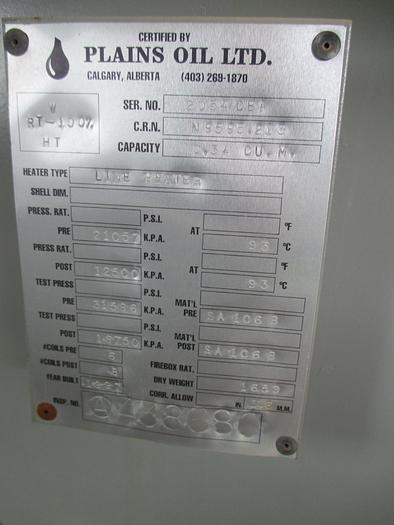

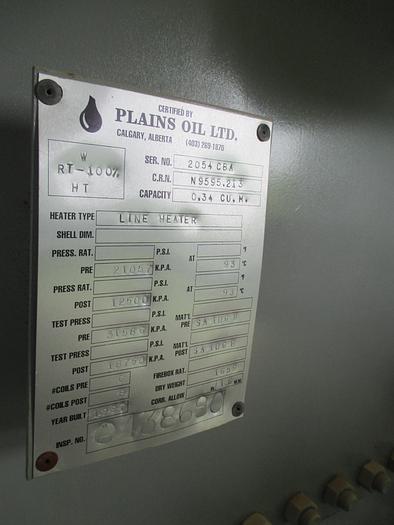

| Serial Number | 2054CBA |
| Stock Number | 14395 |
| Rating (BTU/Hr) | 1.2 MMBTU/Hr |
| Diameter | 54" |
| Length | 20' |

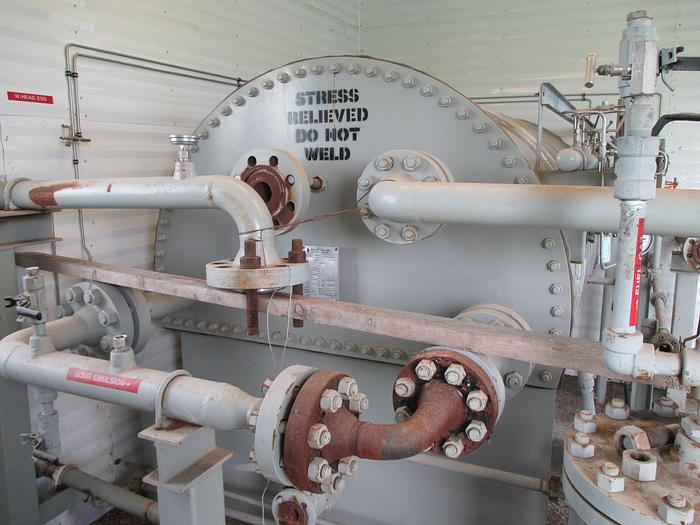

| Preheat Coil | 6 Pass Preheat Coil: 3” 1500 ANSI RTJ 3054 PSI, 1/16” Corrosion Allowance, PWHT & 100% Radiography |
| Reheat Coil | 8 Pass Reheat Coil: 3” 900 ANSI RTJ 1813 PSI, 1/16” Corrosion Allowance, PWHT & 100% Radiography |

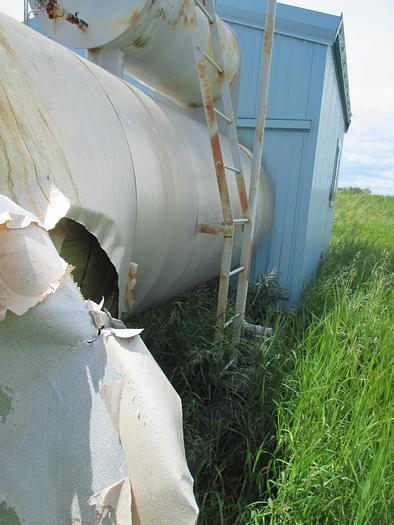

| Insulation | Heater Shell Insulated |
| A# | A#438680 |
| CRN# | N9595.213 |

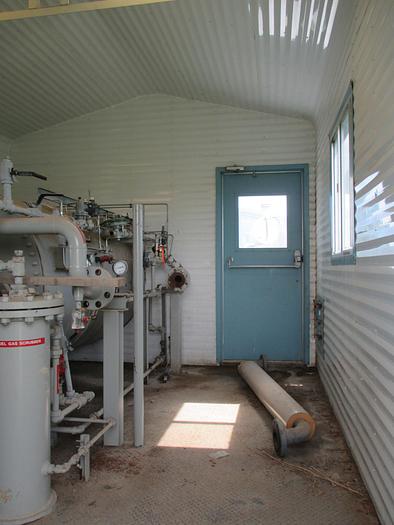

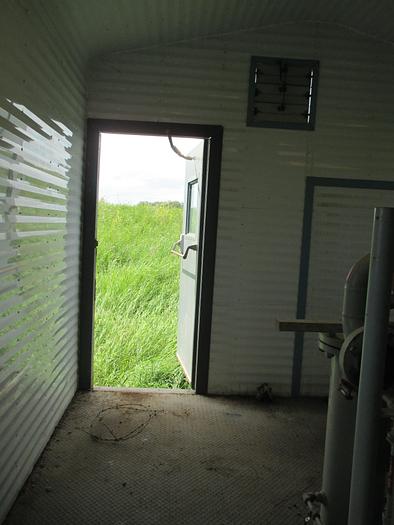

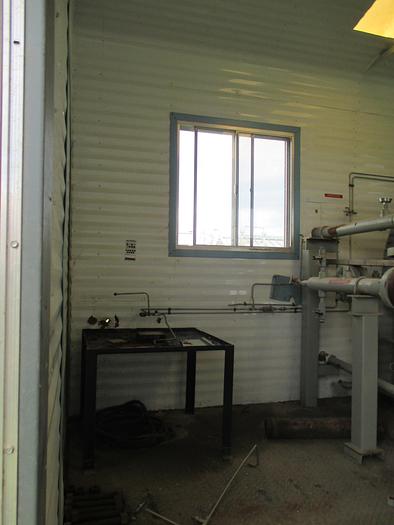

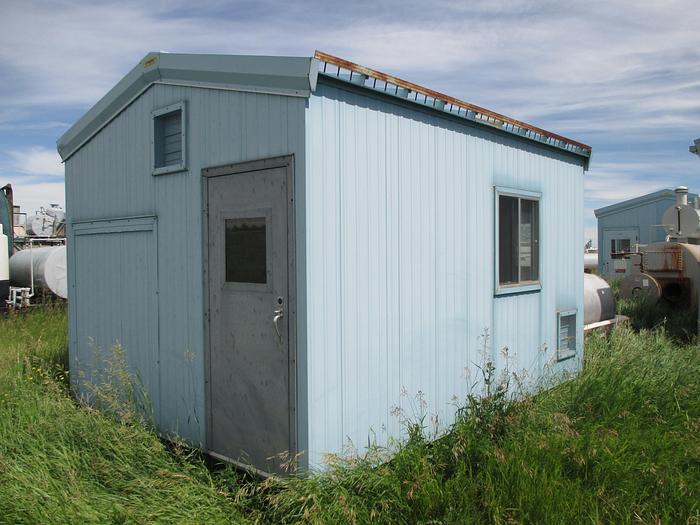

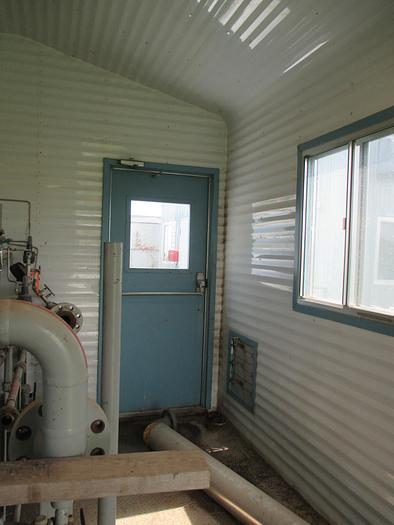

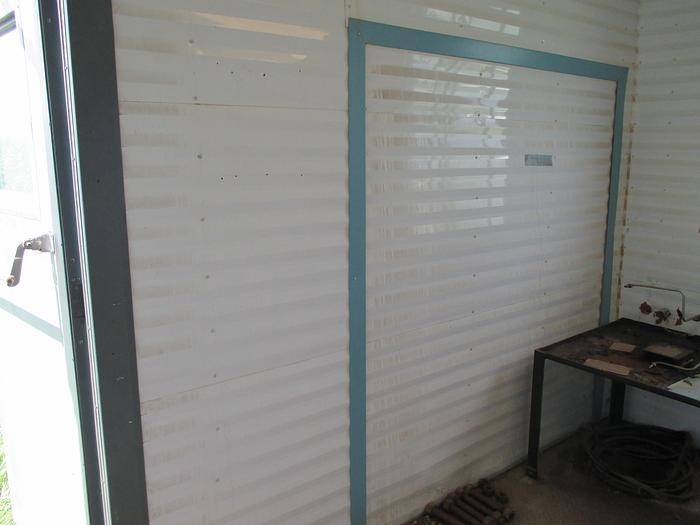

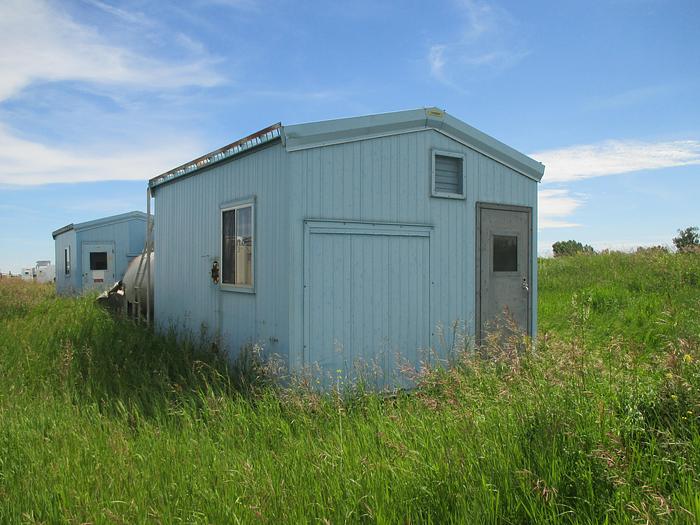

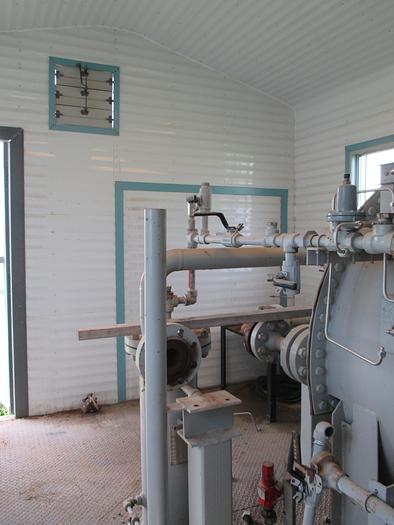

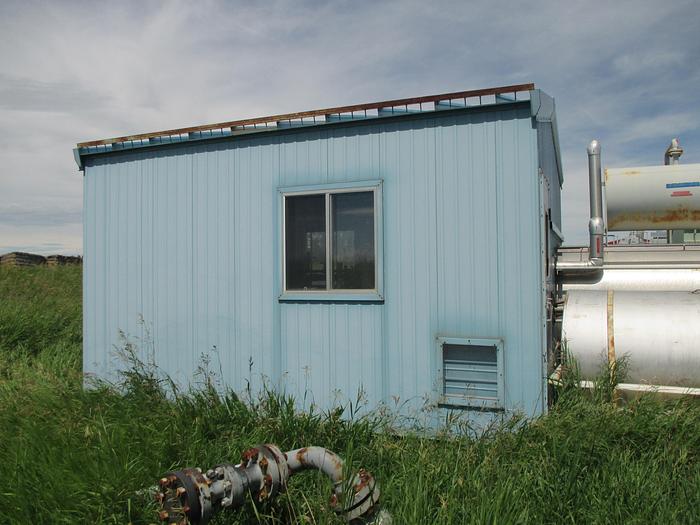

| Building | 12’6” x 16’ x 12’6” High Gable Style Self Framing Building w/ (2) Doors w/windows, (2) Windows, Vent & removable panel |
| Skid | 12’6” x 30’ Structural Steel Skid |
